HI5000

The HI5000 downhole pressure transmitter is highly compact with a maximum length of 57mm. The tough, corrosion-resistant design, using NACE certified materials, makes installation easy in challenging environments.

The Silicon-on-Sapphire sensor is designed to withstand high shock and vibration inputs in high temperature applications which require accuracy, stability and long term performance of downhole pressure monitoring.

The advanced Silicon-on-Sapphire sensor design consists of a piezoresistive silicon strain gauge circuit, which is epitaxially grown onto the surface of a sapphire diaphragm to form a single crystalline structure. The sapphire sensor element is then molecularly bonded to a titanium alloy sub-diaphragm, enabling it to endure higher over-pressures and provide superb corrosion resistance. The sensor exhibits virtually no hysteresis and excellent long-term stability over wide temperature ranges. Find out more about Silicon-on-Sapphire sensor technology here

Datasheet

Standard pressure ranges:

0-400 bar; 0-600 bar; 0-1,000 bar; 0-1,500 bar; 0-2,000 bar

Typical applications include:

• Downhole applications
• Oil & gas environments

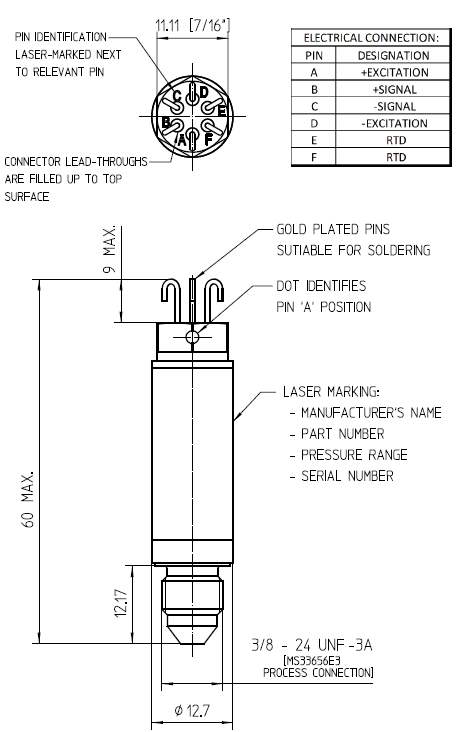

Electrical connections
