Challenges of Downhole Pressure Measurement – And how the HI5000 Overcomes Them

In the unforgiving environments of downhole drilling, accurate and reliable pressure measurement is both critical and extremely challenging. From extreme temperatures and high pressures to aggressive media and limited installation space, the demands placed on instrumentation in these conditions are substantial. Yet, obtaining precise pressure data is essential for optimising drilling efficiency, preventing equipment failure, and ensuring safety.

At ESI Technology, we understand the unique pressures – quite literally – of the downhole industry. That’s why we developed the HI5000, a high-performance downhole pressure transmitter designed specifically to meet and overcome the toughest challenges of this sector.

The Challenges

1. Extreme Temperatures and Pressures

Downhole environments can reach pressures exceeding 20,000 psi and temperatures above 200°C. Most standard sensors are simply not designed to withstand these conditions over extended periods, leading to drift, failure or inaccurate readings.

2. Harsh, Corrosive Media

Drilling fluids can be highly corrosive, with chemicals and particulates that degrade sensor materials and compromise reliability. In such aggressive environments, sensor construction and material selection are paramount.

3. Limited Space

Downhole tools are compact by necessity. The space available for instrumentation is often minimal, requiring ultra-compact devices that don’t sacrifice performance or durability.

4. Long-Term Stability and Accuracy

Drilling operations can extend for long periods, requiring pressure transmitters to remain stable and accurate without recalibration. This long-term reliability is critical to minimise downtime and reduce intervention costs.

How the HI5000 Excels

The HI5000 from ESI Technology Ltd is engineered to thrive in exactly these extreme environments. Here’s how it rises to the challenge:

High-Temperature Operation

The HI5000 is designed to operate continuously in temperatures up to 200°C. This is achieved through advanced electronics and specialist materials that maintain stability and accuracy under sustained heat.

Exceptional Pressure Handling

With ranges available up to 30,000 psi (2000 bar), the HI5000 can handle the immense pressures found in deep drilling operations. Its silicon-on-sapphire sensor technology offers outstanding pressure resilience and performance.

Robust, Corrosion-Resistant Design

The wetted parts of the HI5000 are constructed from NACE approved Titanium grade 5 and BT9 alloys, ensuring excellent resistance to corrosion and chemical attack. This makes it ideally suited to harsh downhole environments where standard materials would fail.

Compact and Customisable Form Factor

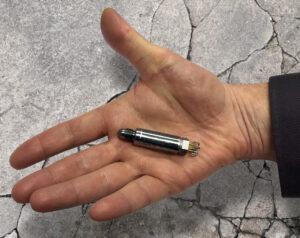

Understanding the spatial limitations of downhole tools, the HI5000 is compact with a maximum length of 57mm!  Moreover, ESI Technology can tailor the sensor’s packaging, electrical connections and outputs to suit specific installation requirements.

Long-Term Stability

Thanks to its sapphire sensor substrate and high-integrity construction, the HI5000 delivers exceptional stability and minimal signal drift over time – essential for long-term deployments in inaccessible locations.

Conclusion

Downhole pressure measurement presents some of the most difficult operating conditions in the instrumentation world. The HI5000 pressure transmitter is purpose-built to meet these challenges head-on, combining durability, accuracy and adaptability in one powerful solution. Whether you’re drilling deeper, faster, or more efficiently, the HI5000 ensures your pressure data is one less thing to worry about.

For more information about the HI5000 and how it can support your downhole applications, get in touch with the ESI Technology team today.
