What is a High Temperature Adapter?

In the world of industrial instrumentation and process control, operating environments can often reach extreme temperatures. These conditions pose challenges for sensitive equipment, particularly pressure sensors and transducers, which may not be designed to withstand high levels of heat. This is where a High Temperature Adapter becomes essential.

Understanding High Temperature Adapters

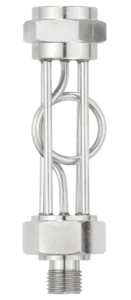

A High Temperature Adapter (HTA) is a mechanical accessory designed to allow pressure sensors to operate in environments where temperatures exceed their normal operating limits. It works by acting as a thermal barrier, isolating the sensor from the direct heat of the process media while still allowing accurate pressure readings.

These adapters are especially useful in applications involving steam, hot gases, oil, and other high-temperature fluids where process temperatures can exceed 150°C and, in some cases, reach upwards of 250°C or more.

How Do High Temperature Adapters Work?

High Temperature Adapters function by introducing a physical distance between the pressure sensor and the hot process media. Many use a cooling element, such as a finned structure or an extended neck filled with air or thermal insulators, to reduce the heat transferred to the sensor.

Some adapters include heat-dissipating fins or are constructed from materials with low thermal conductivity. Others may integrate cooling mechanisms such as water jackets or use capillary tubes filled with insulating oils to further minimise thermal impact.

By reducing the temperature exposure, the HTA enables standard pressure transducers to perform reliably in environments that would otherwise damage their internal electronics or degrade performance over time.

Why Use a High Temperature Adapter?

Here are several reasons industries choose High Temperature Adapters:

• Protect Sensor Integrity: Prevent damage to sensitive electronics caused by excessive heat.

• Ensure Accurate Readings: Minimise thermal drift and signal errors associated with overheating.

• Extend Sensor Life: Reduce wear and degradation caused by prolonged exposure to high temperatures.

• Reduce Costs: Avoid the need for expensive high-temperature-rated sensors by adapting standard models.

Typical Applications

High Temperature Adapters are commonly used in:

• Steam systems

• Combustion engines and turbines

• Chemical and petrochemical processing

• Food and beverage sterilisation

• Pharmaceutical manufacturing

• Oil and gas refineries

Any industry where process temperatures exceed the limits of conventional pressure sensors can benefit from the integration of a high temperature adapter.

ESI Technology Solutions

At ESI Technology, we specialise in pressure measurement solutions that are built to endure demanding environments. Our range of High Temperature Adapters is engineered for compatibility with a wide variety of pressure sensors and designed to perform under extreme thermal conditions.

Whether you’re looking to retrofit existing equipment or design a new high-temperature system, our team of experts is here to help you choose the right configuration to protect your instrumentation and ensure reliable performance.

Conclusion

A High Temperature Adapter is a vital component for maintaining sensor accuracy and durability in elevated temperature environments. By providing thermal protection and enabling the use of standard sensors in extreme conditions, HTAs play a crucial role in industrial operations worldwide.

To learn more about our High Temperature Adapters and how they can benefit your application, contact ESI Technology today.
