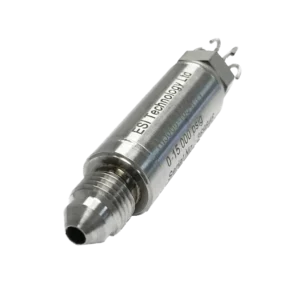

Inside the HI5000: Engineering a Downhole Pressure Transmitter for Extreme Environments

Downhole pressure measurement sits at the sharp end of oil and gas instrumentation. High pressures, extreme temperatures, corrosive fluids and long deployment periods combine to create one of the most demanding operating environments in industrial measurement. The HI5000 downhole pressure transmitter from ESI Technology Ltd has been engineered specifically to meet these challenges, delivering reliable, stable pressure data where failure is not an option.

This article explores the engineering principles behind the HI5000, focusing on materials, sealing strategies, temperature capability, pressure performance and long-term stability.

Designed for the Downhole Environment

Unlike surface-mounted instrumentation, downhole pressure transmitters must operate continuously under extreme mechanical and thermal stress. The HI5000 is designed for permanent or semi-permanent installation in downhole applications, where intervention is costly and data integrity is critical. Every aspect of its design reflects the need for durability, accuracy and repeatability over extended periods.

Materials Selection for Harsh Conditions

Material choice is fundamental to downhole reliability. The HI5000 is manufactured using high-grade stainless steels and nickel-based alloys selected for their strength, corrosion resistance and performance at elevated temperatures. These materials provide protection against aggressive well fluids, high salinity, sour gas exposure and hydrogen-rich environments commonly encountered in oil and gas wells.

Wetted parts are carefully matched to application requirements, helping to mitigate corrosion, stress cracking and material degradation over time. This approach ensures the pressure transmitter maintains its mechanical integrity and measurement performance throughout its service life.

Advanced Sealing and Pressure Containment

Effective sealing is essential in downhole pressure measurement. The HI5000 incorporates robust sealing technologies designed to withstand extreme pressures and thermal cycling without leakage or degradation. Welded construction is used where possible to eliminate potential leak paths, while sealing interfaces are engineered to maintain integrity under dynamic downhole conditions.

This focus on pressure containment allows the HI5000 to operate reliably in high-pressure wells, supporting accurate measurement even as external conditions fluctuate during production and shut-in cycles.

High Temperature Capability

Downhole environments frequently exceed the temperature limits of conventional pressure instrumentation. The HI5000 is designed to operate at elevated temperatures, maintaining accuracy and stability in high-temperature and high-pressure (HTHP) wells.

Thermal effects on sensing elements, electronics and mechanical components are carefully managed through design and material selection. This ensures minimal thermal drift and consistent output across a wide operating temperature range, enabling dependable pressure data in deep and complex wells.

Wide Pressure Ranges and Measurement Accuracy

At the heart of the HI5000 is silicon-on-sapphire (SOS) sensing technology, a key reason for its suitability in extreme downhole environments. In an SOS sensor, a silicon strain gauge is bonded to a sapphire substrate rather than conventional silicon. Sapphire’s exceptional mechanical strength, thermal stability and chemical inertness allow the sensing element to withstand very high pressures and temperatures without degradation.

Unlike oil-filled or bonded foil alternatives, silicon-on-sapphire sensors operate without fill fluids, removing a common failure mode in high-temperature downhole applications. The result is excellent long-term stability, minimal hysteresis and consistent performance under sustained pressure and thermal cycling.

The HI5000 supports a wide range of pressure ratings, making it suitable for a variety of downhole applications, from reservoir monitoring to well integrity assessment. The sensing technology is optimised to deliver high accuracy and repeatability, even at extreme pressure levels.

Precision calibration processes ensure each transmitter meets defined performance specifications, providing confidence in the pressure data used for reservoir evaluation, production optimisation and safety-critical decisions.

Long-Term Stability and Drift Control

Long-term stability is one of the most critical performance criteria for downhole pressure transmitters. Once installed, access for recalibration or replacement is limited and expensive. The HI5000 is engineered to minimise drift over time, preserving measurement accuracy throughout long deployment periods.

Stable sensor elements, controlled manufacturing processes and rigorous testing contribute to consistent performance under sustained pressure and temperature exposure. This stability supports reliable trend analysis and reduces uncertainty in long-term reservoir monitoring.

Quality, Testing and Reliability

Each HI5000 pressure transmitter is manufactured under ESI Technology’s quality-controlled processes, ensuring repeatability and traceability. Devices are subjected to comprehensive testing to validate pressure performance, temperature capability and mechanical integrity before deployment.

This commitment to quality underpins the HI5000’s reputation as a dependable solution for downhole pressure measurement in demanding oil and gas applications.

Engineered for Confidence Downhole

The HI5000 downhole pressure transmitter reflects a design philosophy centred on reliability in extreme environments. Through careful material selection, advanced sealing, high temperature capability and long-term stability, it delivers accurate pressure data where it matters most.

For operators seeking robust, high-performance downhole pressure measurement, the HI5000 provides confidence from installation through the full lifecycle of the well.
